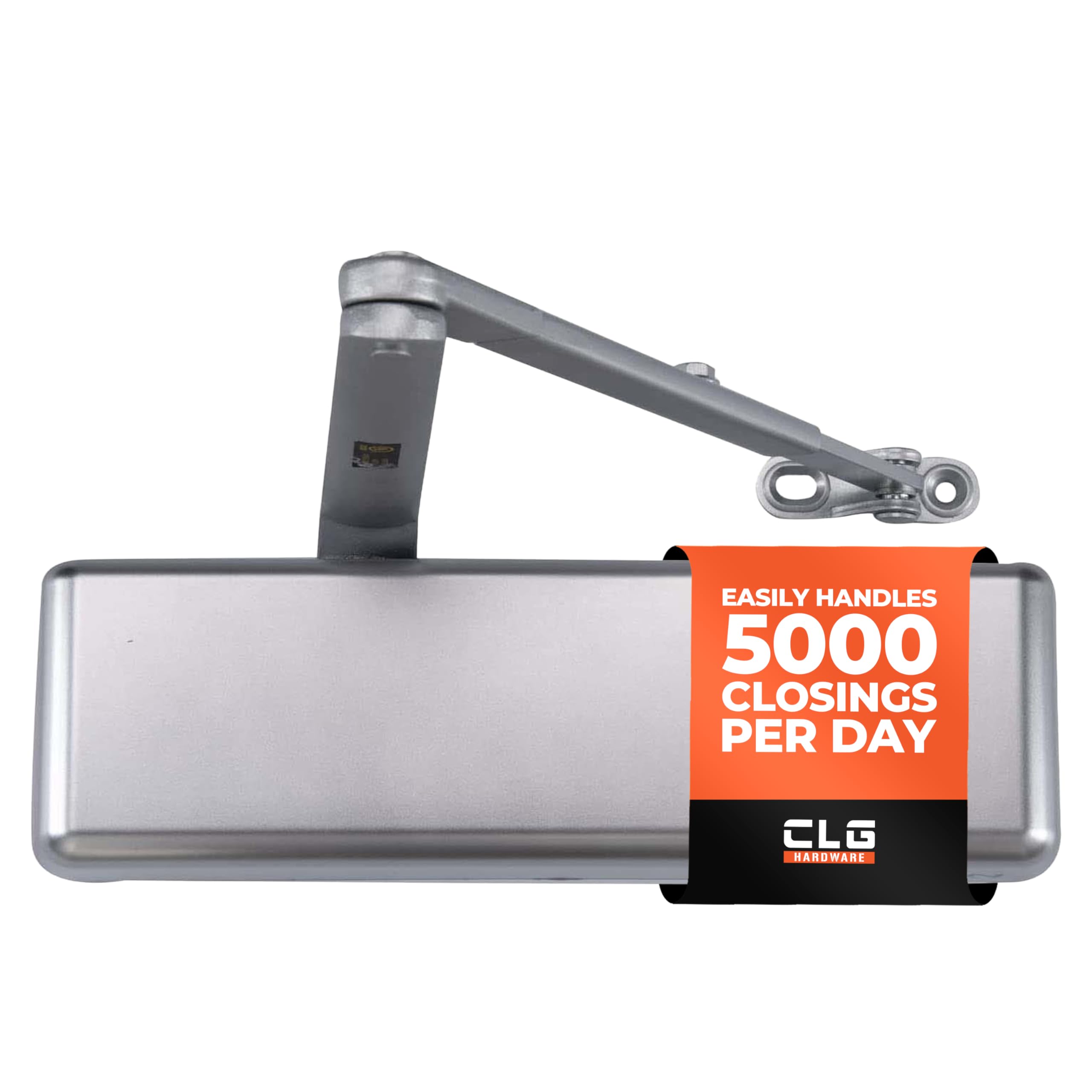

CLG HARDWARE Extra Heavy Duty Commercial Door Closer, Closing Delay Timer
10 sold in last 24 hours
- EXTRA HEAVY DUTY COMMERCIAL GRADE: Made with a powder-coated cast iron body, wrought steel arm, and heat-treated piston, this commercial door closer ensures durability, reliability, and corrosion resistance for doors in extra high-traffic environments (up to 5,000 openings per day); suitable for department/mall/retail store entrances, office buildings, schools, and airport security doors

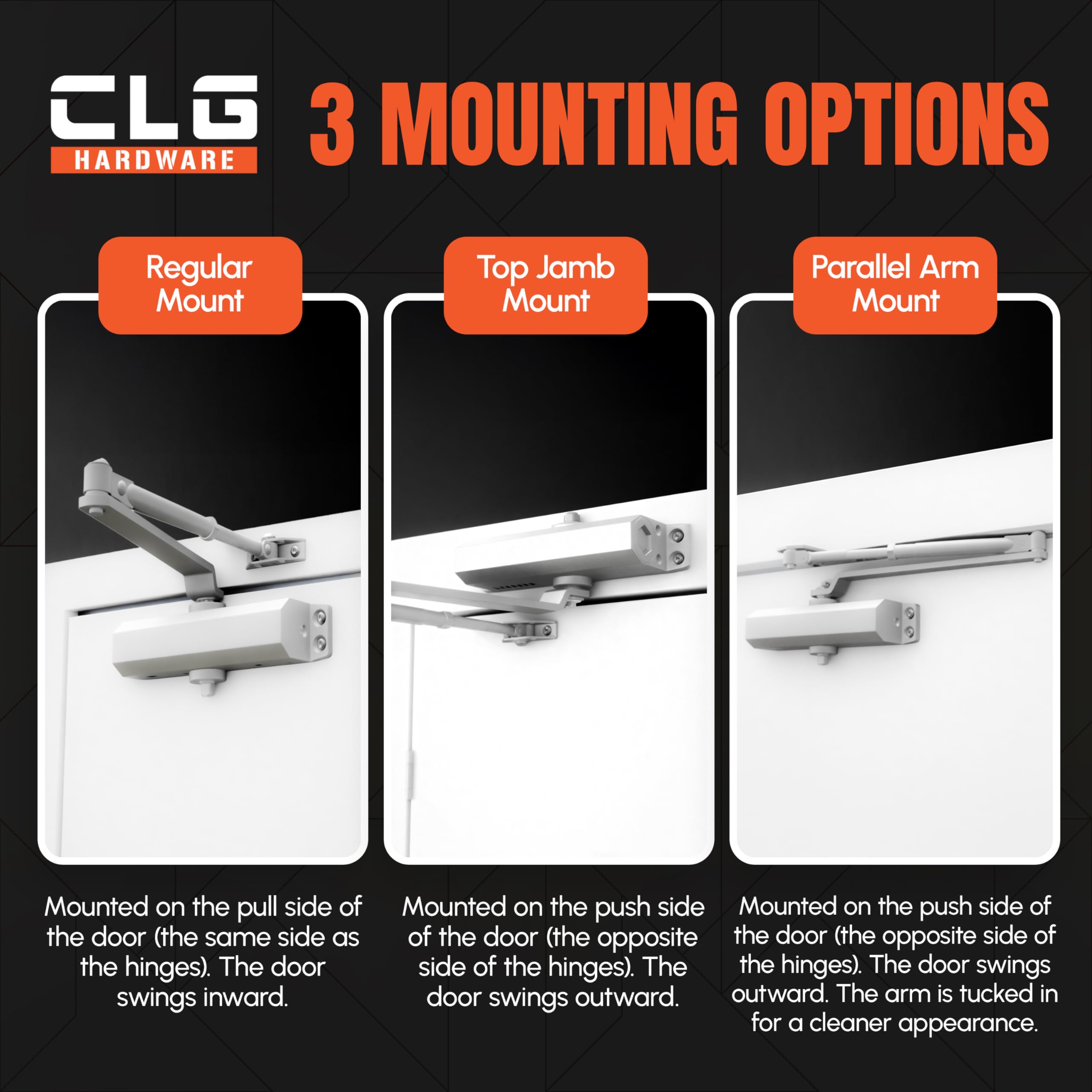

- THREE MOUNTING OPTIONS: This non-handed auto door closer (works on left or right-handed doors) includes three mounting options to suit any door and frame type (pull side or push side), including regular arm mount, top jamb mount, or parallel arm mount; all required hardware, a drill hole template, and easy-to-follow instructions are included for hassle-free installation

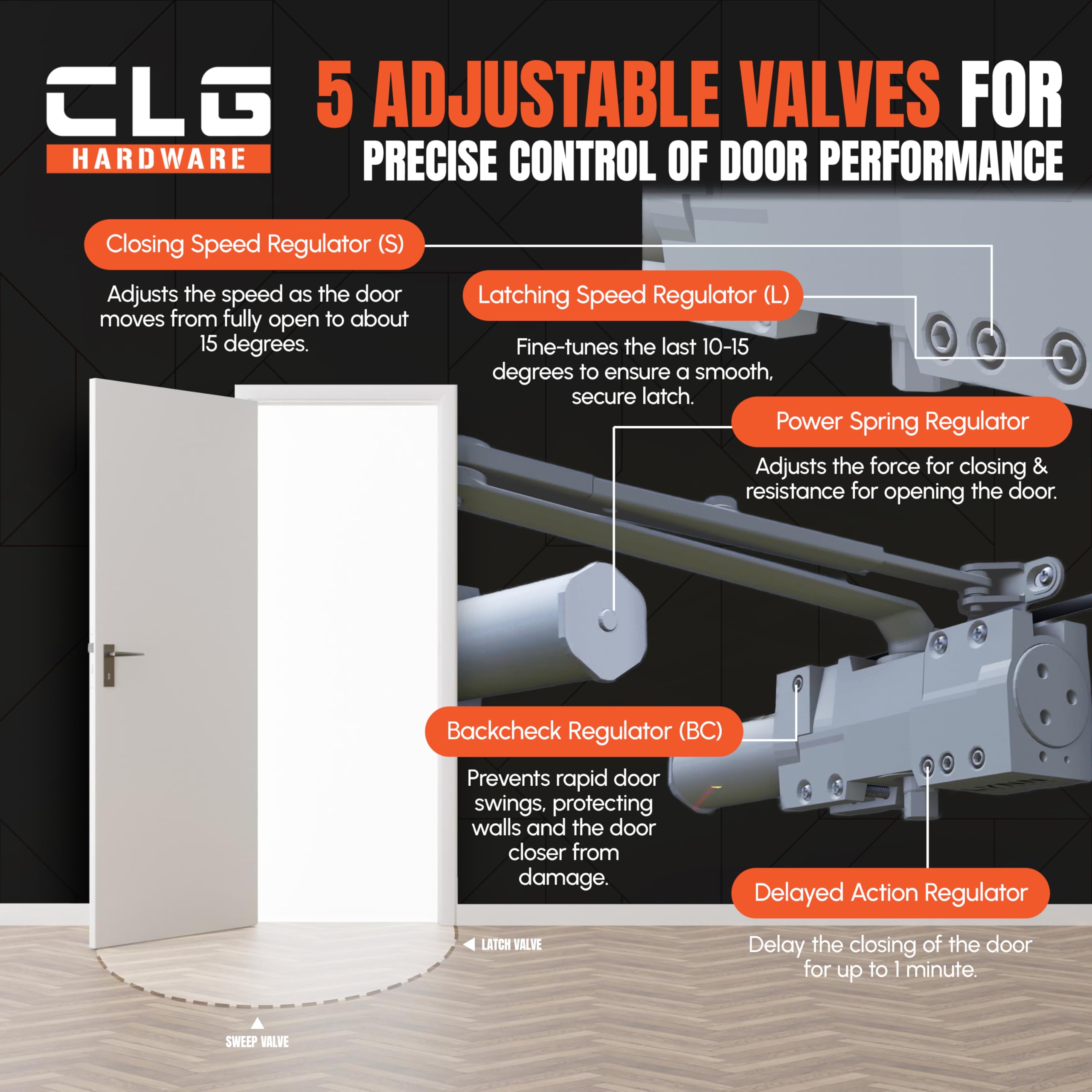

- 5 ADJUSTMENT VALVES FOR COMPLETE CONTROL: This hydraulic door closer features 5 adjustment valves to control the closing speed, latching speed, backcheck, spring force, and a delayed closing timer; fine-tune for smooth, quiet, and secure closing
- CERTIFIED FOR SAFETY AND LONG-TERM USE: UL 3-Hour Fire Rated, ADA Compliant, and ANSI/BHMA A156.4 Certified (tested to exceed 2 million cycles), ensuring safety and reliability; the DC9016 door closer is trusted by contractors, property managers, and builders
- USA SUPPLIED & SUPPORTED: Our commercial door closers are supplied by a USA-based company, providing reliable year-round support
- SPECIFICATIONS: This door closer weighs 12.6 lbs (5.7 kg) and is for doors weighing up to 330 lbs (150 kg) and 60” (1500 mm) wide; it’s dimensions are 3 1/2" (89 mm) high, 12 1/4" (311 mm) wide and 2 1/4" (57 mm) deep; its screw/bolt pattern is 5" wide (center to center) and 2 1/4" high (center to center); the spring force is adjustable from Setting # 1 (2 pounds of closing force) through to Setting # 6 (14 pounds of closing force)
Tags |
Estimated shipping
Select a product to estimate shipping.The CLG HARDWARE Extra Heavy Duty Commercial Door Closer is a robust and reliable solution for ensuring smooth and secure door operation in demanding environments. Designed for high-traffic areas, this door closer provides consistent performance and long-lasting durability.
Key Highlights
- Built to Last: Constructed with a powder-coated cast iron body, wrought steel arm, and heat-treated piston for exceptional strength and corrosion resistance.
- Versatile Mounting: Offers three mounting options – pull side, push side, and parallel arm – adapting to a wide range of door and frame configurations.
- Precise Control: Features five adjustment valves to fine-tune closing speed and latching force, optimizing door operation.
- Easy Installation: Includes a drill hole template and clear instructions, simplifying the installation process.
- Suitable for High Volume: Designed to withstand up to 5,000 daily openings, ideal for busy commercial spaces.
Useful Facts
- Material: Cast Iron Body, Wrought Steel Arm
- Finish: Dark Bronze
- Dimensions: 12.25"L x 12.25"W x 3.5"H
- Weight: 10 pounds
- Compliance: Meets ANSI and UL standards.
Good Fit For
- Department Stores
- Retail Locations
- Office Buildings
- Schools
- Airport Security Doors
- High-Traffic Commercial Entrances
Product details
| Main Specification | |
|---|---|
| Specifikation Met | UL or Ansi |
| Anbefalede anvendelser til produkt | High-Traffic Areas or heavy doors or commercial or public settings |
| Fremstiller | Clg Hardware |
| Enhedstælling | 1 Antal |
| Varens dimensioner L x W x H | 12.25"L x 12.25"W x 3.5"H |
| Udvendig afslutning | Bronze |
| Mærke | Clg Hardware |
| UPC | 195893553181 |
| Antal elementer | 1 |
| Inkluderede komponenter | Brackets and Soffit Plate to allow Regular/Top Jamb/Parallel Arm Installations |
| Produktdimensioner | 12.25"L X 12.25"W X 3.5"H |
| Materiale | Støbt jern |
| Farve | Dark Bronze |
| Størrelse | Extra Heavy Duty |
| Anlægstype | Skrue- ind |
| Vægt | 10 pounds |
| Product information | |
| Pakningsdimensioner | 13.58 X 4.72 X 3.98 Inches |
| Technical Details | |
| Material | Cast Iron |
| Item Weight | 10 Pounds |
| Installation Type | Screw-In |
| Size | Extra Heavy Duty |
| Delnummer | Clg-Clg9016-Bc-Da-Duro |
| Style | Grade 1 |
| Item Package Quantity | 1 |
| Fabrikantens delnummer | CLG-CLG9016-BC-DA-DURO |
| Særlige egenskaber | Machine And Wood Screws |
| Batteries Required? | No |
| Batteries Included? | No |
| Materialetype | Cast Iron |
| Brand | Clg Hardware |
| Item details | |
| Recommended Uses For Product | High-Traffic Areas or Heavy Doors or Commercial Or Public Settings |
| Included Components | Brackets And Soffit Plate To Allow Regular/Top Jamb/Parallel Arm Installations |
| Others | |
| Varens højdepunkt | Contractors Choice or 3 Mounting Options or Speed & Force Adjustments or Automatic Door Closer or 3 Hour Fire Rated (DC9016 Bronze) |
| Produkttype | Door Closers |
