T Slot Router Bit Set, 1/4" Shank, 3/8" Depth, 5Pcs
5 sold in last 24 hours
- T-Slotting Cutter Set Specifications: 1/4 inch shank with cutting heights of 1/8 inch, 5/32 inch, 3/16 inch, 1/4 inch and 5/8 inch, 1-1/4 inch cutting diameter to create 3/8 inch deep slots and grooves in wood and plywood

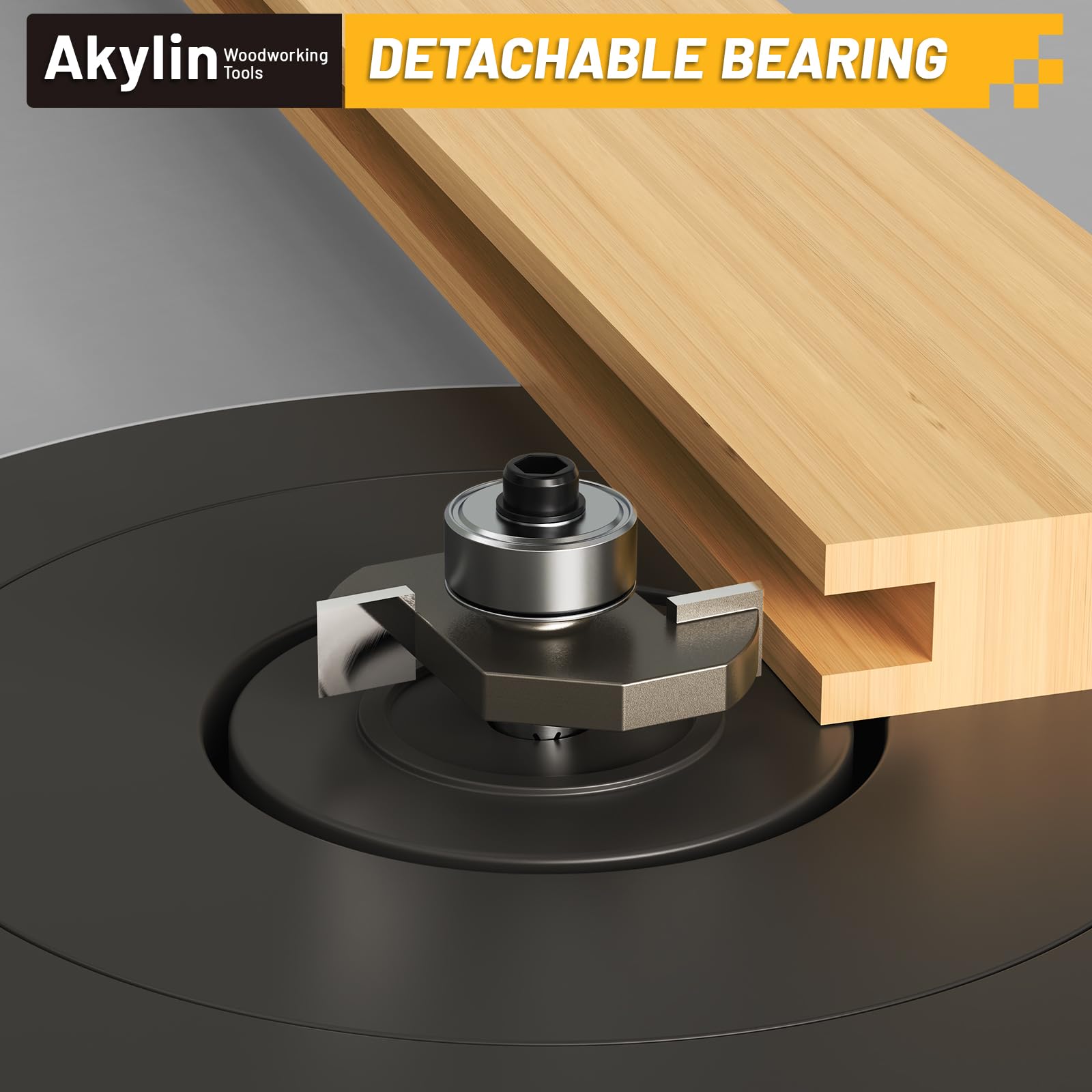

- Ball Bearing T Track Bits: Build T-moldings, spline joints, tongue and groove joints with included 1/2 inch diameter bearing, depth of cut can be adjusted by using alternative bearing sizes

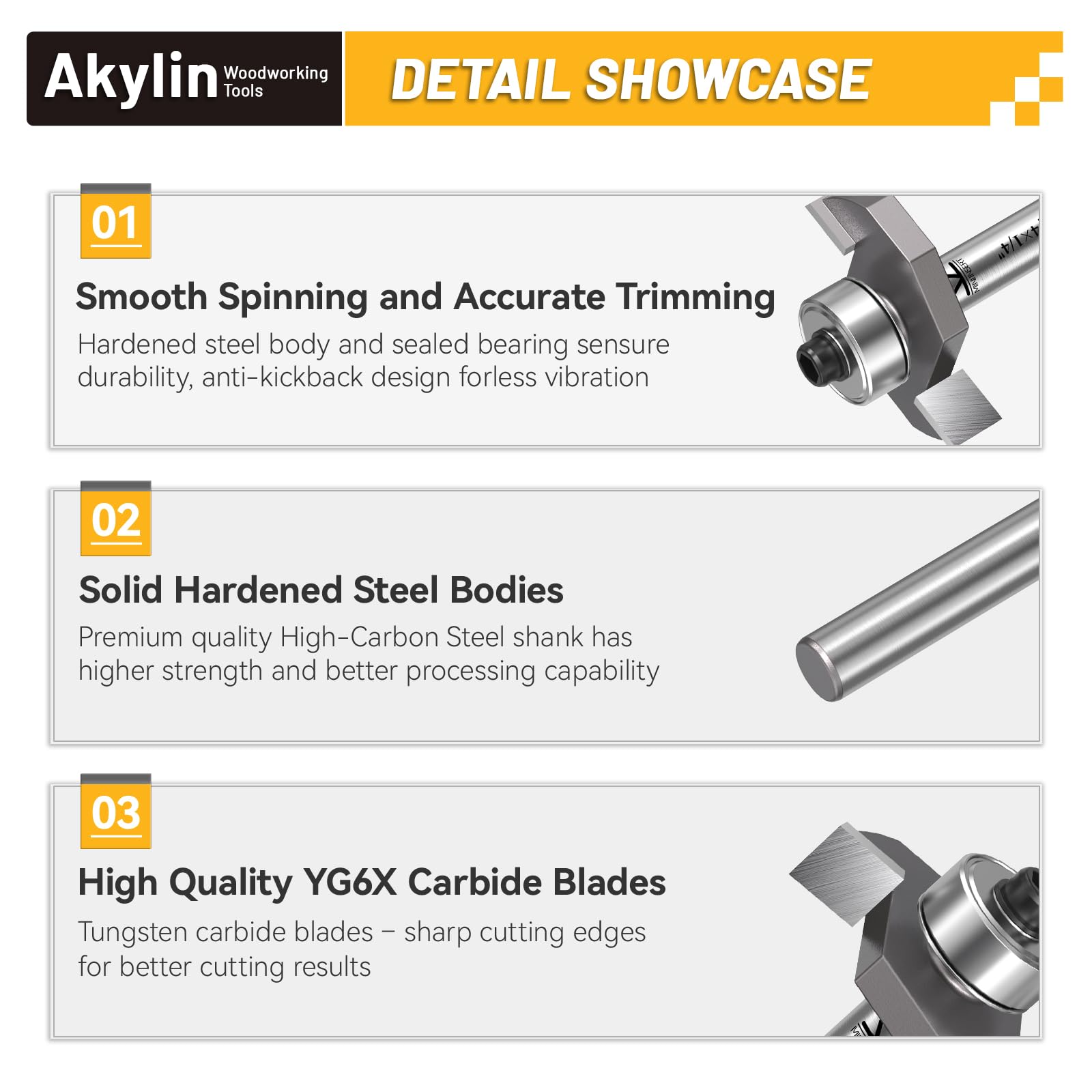

- Tungsten Carbide Construction: K10 original carbide tipped with minimal wear and longer life, silver induction brazing for maximum strength and durability, heat resistant coating provides superior wear resistance and rust prevention
- Solid Steel Shank Design: 1/4 inch shank made from solid steel provides lower vibration for larger cutters and added stability, bearing guide ensures smooth running and reduces chipping
- Versatile Routing Applications: Suitable for routing hardwood, softwood, plywood or composites, use in hand-held or table-mounted routers with maximum RPM of 16,000
- Adjustable Slot Depth Options: Depth of cut varies with bearing size - 16mm bearing creates 5/16 inch deep slots, 19mm bearing creates 1/4 inch deep slots, 22mm bearing creates 3/16 inch deep slots
Estimated shipping
Select a product to estimate shipping.5Pcs T Slot Router Bit Set 3/8" Depth
1/4" shank with cutting heights of 1/8", 5/32", 3/16", 1/4" and 5/8".
1-1/4" cutting diameter to create 3/8" deep slots and grooves in wood and plywood.

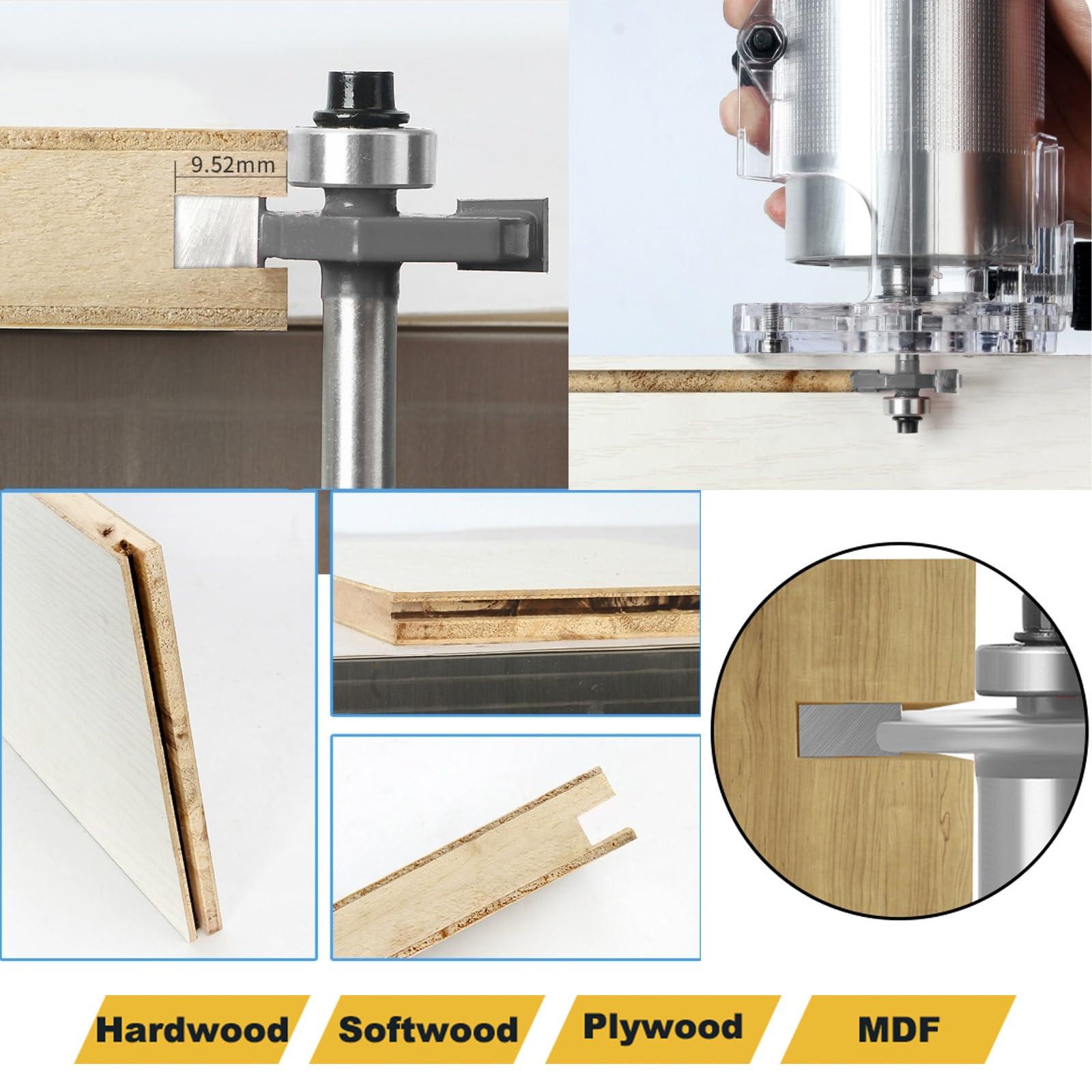

Complete with an arbor, bearing and clean-cutting 2-wing cutter to quickly cut 3/8"(9.5mm)-deep slots and grooves.
A 1/2"-12.7mm diameter bearing is supplied with each cutter,depth of cut can be changed by purchasing alternative bearing sizes.
With Φ16mm bearing,get 5/16"(7.9mm)-deep slots;
With Φ19mm bearing,get 1/4"(6.3mm)-deep slots;
With Φ22mm bearing,get 3/16"(4.8mm)-deep slots;
NOTE:
1.A little rust preventive oil deposits on the sandblasted surface (looks a little dirty),is normal and doesn't affect the usage. Absolutely guaranteed to be a good quality new bits!
2.Insert the cutter shanks into the collets as deep as possible,leave 3mm or less shank showing.
3.Before the product is received for using, check the drill bit for cracks or chips,we provide perfect after-sales service.
4.Trial cuts should be made on waste material before starting any project.
SAFETY INSTRUCTIONS:
1.Always wear dust protection mask,eye protection in the form of goggles, safety spectacles or a visor.
2.Make sure use on a router machine for which the product is applicable.
3.Please make sure that the Router Bits and router table connections is tight and avoid loosening and causing it to throw out !!!
4. Suitable for all woodworking projects for both professionals and hobbyists.
5.Always return the cutter to its packaging after use.
6.Before each use check that the cutting tool is sharp and free from damage.
ROUTING SAFETY:
1.Ensure the cutter can be used safely with the chosen router before use. Check that the cutter is fitted securely in the router collet.
2.Do not take heavy and deep cuts in one pass as this will overload the router.
3.When stated, the speed range should be adhered to. Recommended speeds are shown in shop products descriptions.
Product details
| Main Specification | |
|---|---|
| Fremstiller | Akylin |
| Cutting Diameter | 3.18 centimeters |
| Mærke | Akylin |
| Antal elementer | 5 |
| Cut Type | T-Slotting Cutter |
| Cutting Length | 1.59 centimeters |
| Inkluderede komponenter | Router Bits |
| Varens diameter | 3.18 centimeters |
| Materiale | Carbide |
| Størrelse | 1/4"x 5Pcs |
| Vægt | 0, 24 kg |
| Technical Details | |
| Delnummer | US-AKRB0514GZTXD |
| Materialetype | carbide |
| Number of Flutes | 2 |
| Others | |
| Varens højdepunkt | 3/16" or 5/32" or Cut Height 1/8" or 1/4" and 5/8" or T Trark Bit with Bearing or T-Slot Cutter for Plywood or Melamine |
| Produkttype | Edge Treatment & Grooving Bits |
| Størrelsesnavn | 1/4"x 5Pcs |
