3/8" OD 50FT(15M) Air Line Tubing Kit with 24 pcs Push to Connect Fittings
6 sold in last 24 hours

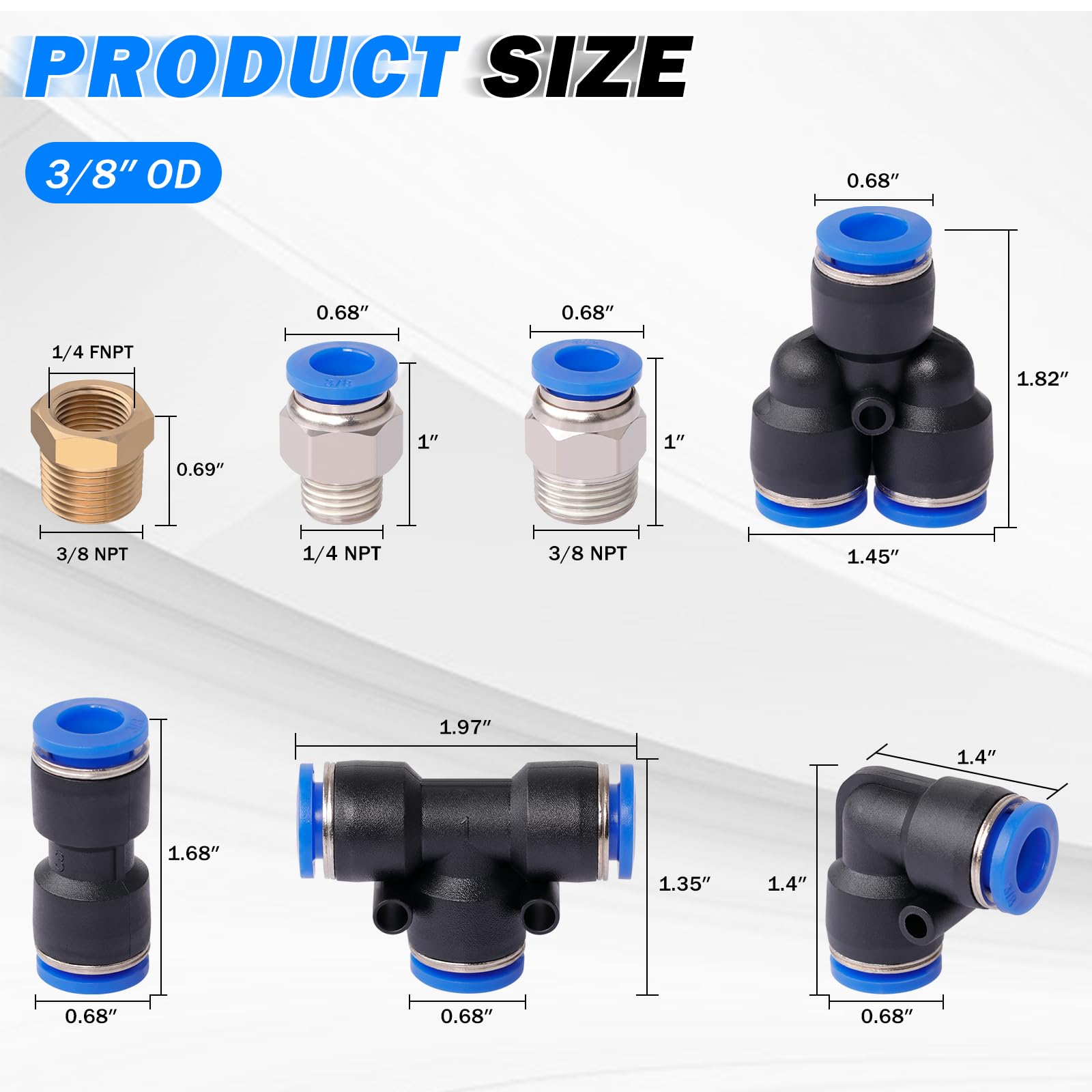

- YOU WILL GET - The 3/8" Air Hose Fittings Kit includes 50 feet(15.24m) of black 3/8" Air Line. 4 Splitters, 4 Elbows, 4 Tees and 4 Unions. 8 male straight fittings fit 3/8" Tube OD with 1/4" and 3/8" NPT Thread, 2 brass bushing 1/4" FNPT x 3/8" NPT,1 pc Plastic Tubing Cutter, 1 roll (4 meters) Thread Seal Tape(Pink shell and blue shell are distributed randomly)

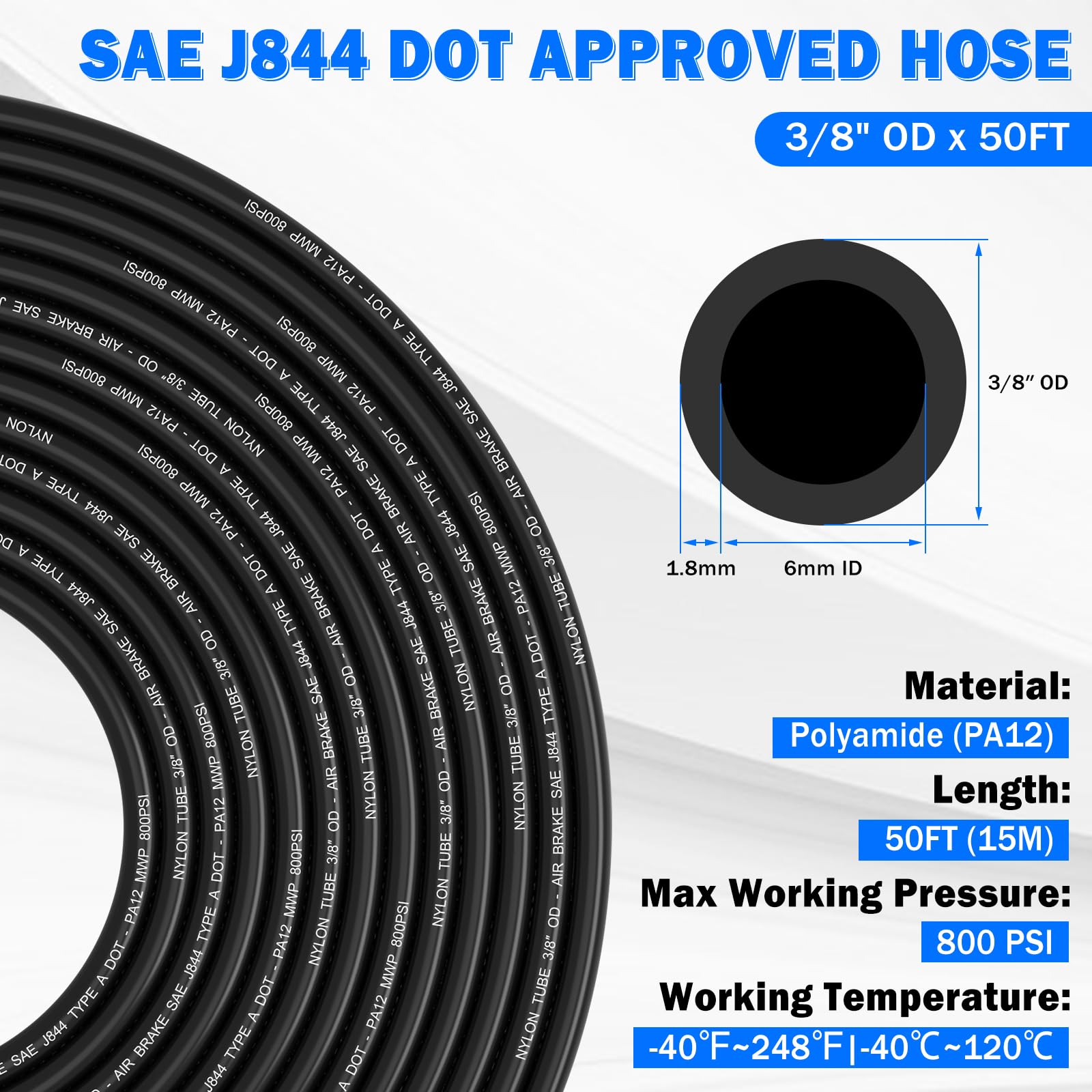

- SAE J844 DOT APPROVED HOSE - The 3/8" air line made of high-quality PA12 Polyamide, meets DOT Standards and SAE J844 air brake system requirements. A Max Pressure: 800 Psi. Working Temperature: -40 °C+120 °C. Provide highly flexible , excellent resistance to wear and Impact
- PUSH TO CONNECT FITTINGS - Quick connect air hose fittings kit made of high quality Polybutylene Terephtalate (PBT) and with stainless steel lock claw and good steel washers for a thousand bounces. High pressure resistance and environmental, can withstand strong pressure without tripping. Fluid type: air, vacuum, 0 - 145 Psi, 0 - 0.9 Mpa. Proof pressure: 1.32 Mpa. Temperature Range: 0-60 °C | 32 -140 °F
- WIDE APPLICATION -3/8 air line fitting kit is suitable for PU / PA / PE / PVC lines or hoses. Our 3/8" air hose for air brake system,air or fluid transfer, transfer liquids, air, water or solids. They widely applied in automotive, manufacturing production lines or truck or trailer repairs. Besides those, daily gardening maintenance and lawn mower machine areas also need those items
- EASY TO INSTALL - Push to connect air fittings assortment is a simple push in design and easy to be installed. Release rings at the top could be pushed down easily when inserting the tube into the coupler and bouncing up immediately when taking out the tube. Cutting tool is included for meeting your tube length requirements
- UPGRADE YOUR PNEUMATIC SYSTEM - Our Tubing 3/8 Air Brake Line Pneumatic Hose offers excellent flexibility and resilience. Ensures compatibility with various fittings and pneumatic systems, providing ease of installation and versatility based on your space and compressed air requirements. This Nylon Hose Will Meet Your Needs With Ease
Estimated shipping
Select a product to estimate shipping.3/8" DOT AIR LINE WITH AIR LINE FITTINGS KIT
4 PCS Splitters, 4 PCS Elbows, 4 PCS Tees , 4 PCS Unions
4 PCS 3/8" OD x 1/4" NPT Thread Male Straight Fittings
4 PCS 3/8" OD x 3/8" NPT Thread Male Straight Fittings
50 FT(15.24)Nylon PA hose, 2 PCS 1/4" FNPT x 3/8" NPT Brass Bushing Fittings
1 pc Plastic Tubing Cutter, 1 roll (4 meters) Thread Seal Tape
Product details
| Main Specification | |
|---|---|
| Inkluderede komponenter | 1 pc Plastic Tubing Cutter or 1 roll (4 meters) Thread Seal Tape. or 2 brass bushing 1/4" FNPT x 3/8" NPT or 29 pcs air line tubing kit: 50 feet(15.24m) of black 3/8" OD Air Line or 4 Splitters or 4 Elbows or 4 Tees and 4 Unions or 8 male straight fittings 1/4" and 3/8" NPT Thread |
| Materiale | Polyamid or Polybutylene Terephtalate (PBT) |
| Fremstiller | Taiidaues |
| Enhedstælling | 1 Ounce |
| Udvendig afslutning | Copper |
| Mærke | Taiidaues |
| Antal stykker | 25 |
| Tråd størrelse | 3/8 |
| Farve | black，blue |
| Størrelse | 29PCS & 50FT 3/8" Air Line |
| Forbindelsestype | Push to Connect |
| Tråd type | Npt |
| Product information | |
| Antal pakninger | 1 |
| Sæt navn | Air Line Tubing Kit |
| Technical Details | |
| Materialetype | Polybutylene Terephtalate (Pbt) or Polyamid |
| Item details | |
| Standardnummer | T-50FT-3-8AH-PTC |
| Others | |
| Varens højdepunkt | Taiidaues SAE J844 PA Nylon Air Line and Quick Connect Fitting for Air Brake System or Fluid Transfer or Pneumatic Automation |
| Produkttype | Air Compressors & Inflators |
